Item Description


new updated bluetooth pen reach distance 40 cm with earpiece, bluetooth pen replace loop set or any bluetooth kit,to transmit signal from ur bluetooth phone to 305 earpiece receiver, 10 meter control area with ur cell phone.bluetooth pen 2-3 hours talking, 305 earpiece keep work 6 hours, follow with 305 earpiece detail date.

105 Earpiece: manualdownload:

Dimension: 3 x 5 x 7mm
Max v olume output 3kHz : 93
general volume output 1kHz : 73
Frequency : 300Hz-5kHz
distortion rate: < 2%
S/N at 2KHz : >50dB
Receiving system : electromagnetism receiving
model of zinc battery : 416
battery longevity : 15 hrs
Weight including battery : 0.8g


Real size of earpiece Earpiece with battery



The Inductive Bluetooth Pen:

You can connect bluetooth pen to bluetooth enabled cell phones. All kinds of invisible earpieces are applicable to receive voices from bluetooth pen.The new developped Inductive Bleutooth Pen is designed for wireless connection to cellphone and secret spy invisible earpiece. It transfers clear mono voice to invisible spy earpiece wirelessly.

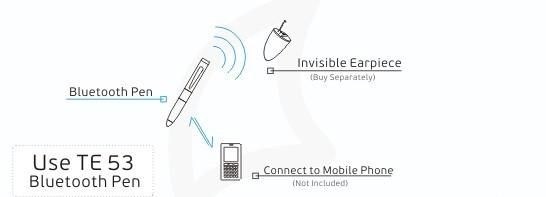

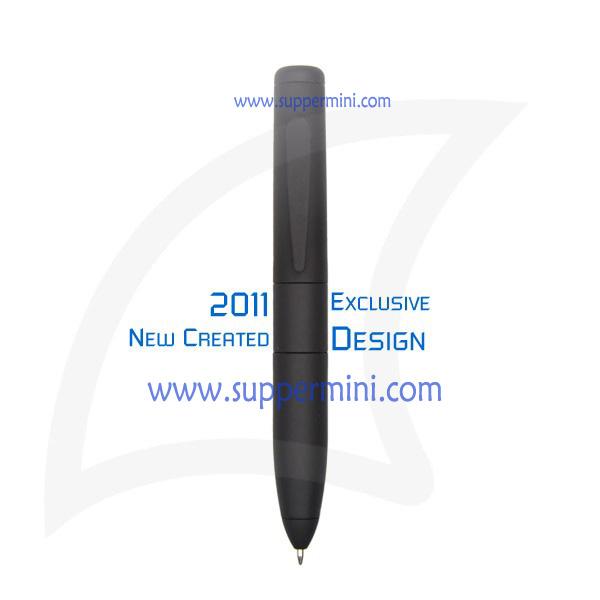

New design created by MicroEars. Strong 2 watt audio amplifier inside. Upgraded model of SEA09 Bluetooth pen. Available to pair amplified Bluetooth pen with any Bluetooth enabled mobile phones. The excellent 2 watt audio amplifier ensure earpiece user will hear clearly while normal writing. Below is the working principle of 2 watt amplified inductive Bluetooth pen transmitter .

Buy TE53 amplified Bluetooth pen earpiece transmitter you will get below advantages and lifetime technical supports from e-mail and live chat (in working hours. Wholesale order is welcome.2 Watt Audio Amplifier Inside. Output Extreme Strong Power to Drive Spy Invisible Earpieces.High power audio amplifier. Rated output power is 2 watt.
Creates strong magnetic field to drive spy earpieces.Low battery power consumpition and long time work no heat.
Stereo CSR Bluetooth Moudle. Top quality works stable and reliable. Stereo Bluetooth moudle made by CSR.Supports play music from mobile phone.Low power consumpition, use 1mA power only in standby status. Very sensitive microphone. Pickup clear voice even whispered words.v ery high sensitive microphone. Rated gain is 38dB.Another side hear clearly while whisper to bluetooth pen.

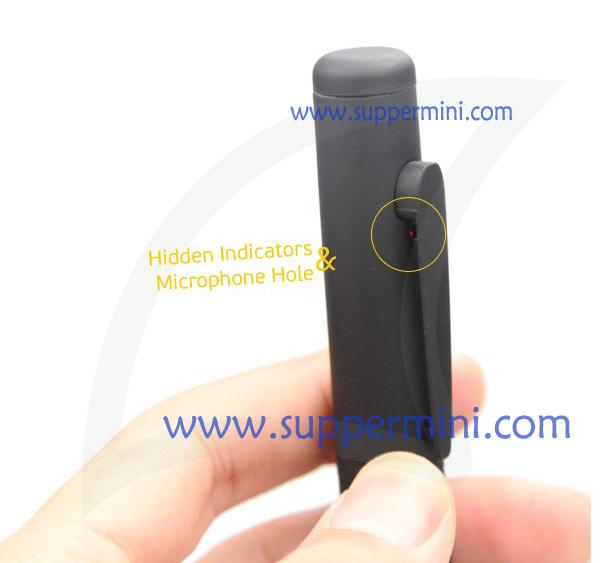

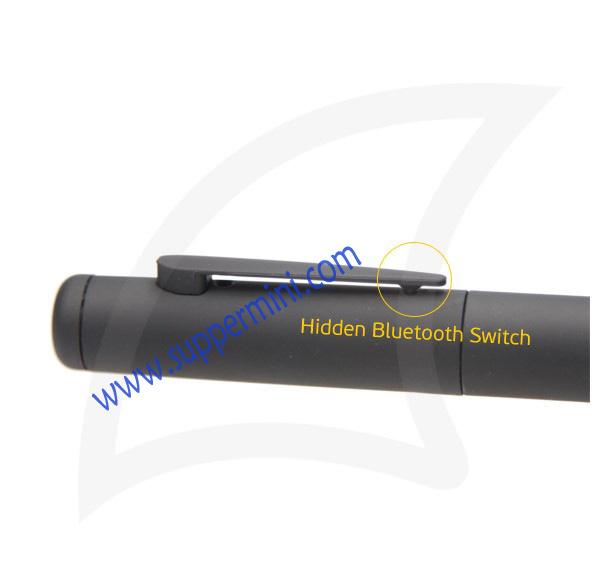

Hidden microphone hole under ball-pen clip. High capacity lithium battery. Works in phone conversation for 2 t0 3 hours. 320mAh rechargeable li-battery. Standby time 200 hours.Battery life is 2 - 3 hours in phone conversation.Play music battery can last 1 - 1.5 hour. Simply push down the ball-pen cli you can operate internal Bluetooth module. The 2 watt amplified Bluetooth pen transmitter is able to drives all kinds of electronic wireless earpieces. You can also put Bluetooth pen in coat pocket while hearing in wireless earpiece. Both of red and blue color indicators are covered by pen clip.all-pen core is replaceable. Only black color writing is available. Alternative blue color available in end of March 2011.


Frequency Range 2400~2480MHz
Transmit Range to earpiece 40cm / to cellphone < 10 meter
Bluetooth Compatibility Bluetooth version 1.2 / 2.0
Bluetooth Password "0000"
Integrated Microphone Yes
Battery Type Lithium Rechargeable Battery
Battery Life Talking time 2~3 hours / Play Music 1~1.5 hour / Standby 200 hours
Color Black
Brand MicroEars
Product Dimension / Weight L140 x D15mm / 30gram
Package Size / Weight EVA Bag 190x98x42mm / 190gram (cube 240gram)
Warranty 1 Year
Launched Date Aug 10, 2010
Update Log Feb 22, 2011 -- Upgrade old mode SEA09 to new amplified model TE53. Mar 08, 2011 -- Add slim AC adaptor. Able to buy mini car adaptor separately.

Simple Instruction:

manual download:

pls charge bluetooth when received pen,only little power in the pen(see manual how charge).
pls place it in a little dark enviroment(see light is better), make sure pen is close situation( light turn off).

1,Pair with mobile phone: A,keep press switch button(clip ball) and hold about 8 SECOND(enter pair situation directly),until both of blue and red indicators are turn on and flash one after one. (if indicator flash blue or red,pls press switch 3 second turn off bluetooth. Before power off red indicator will flash 3 times)  B,Enable Bluetooth function in mobile phone and search TE53selected within 1 munite( after 1 munite will recover flash, out of pair situation),password"0000", the connect will okay! Indicator flash in blue per second.
2,put battery to earpiece (working sound
ssis correct),you can play music by phone or mobile to mobile by GSM network(not home phone).
3,turn on bluetooth pen: if already paired, next time do not need pair again, make sure bluetooth function in mobile is on, then turn on bluetooth pen they will connect automatically. For save battery power pls turn off bluetooth pen if do not use more 30 munites. Turn on: press and hold bluetooth switch 3 second untill indicator flash 3 times rapidaly. Pls the switch blue indicator will flash per 3 seconds. Turn off: press and hold switch 3 second untill see red indicator flash 3 times.


International Buyers Please Read

A)     please leave number of phone for express delivery

B)     nothing better then leave us positive and 5 star DSR, pls always in contact us firstly if you have any require or problem, will service you satisfaid.

C)     Import taxes or charges are not included in the item price or shipping charges,this charges is the buyer?s responsibility.So please check your country?s customs office to determine what these additional costs will be prior to buying. We will write that infos you wish if contact us.



Package include: 1, 305 earpiece with box(black cover or skin color or ) 2, bluetooth pen and usb recharge cable (AC power adaptor EU or US pins)3, one battery (hidden under sponge of box) Package is with slim AC power adaptor, 5V ~ 750mA. You can also add car power adaptor. Shipping: DHL 5 -7 WORKING DAYS ARRIVED,Arrange shipping ONLY below condition okay: 1, telephone number left to us(express request); 2 ,we will sent paypal address and not accept P.O.BOX, if uncorrect pls contact within 12 hours after ur payment 3,make sure you not live DHL romate area (bcz it will cost extra 30 usd, will pay by buyer):    (If You do not want to pay extra, we can cancel transaction or change express)   Payment: paypal only Warranty:  1 year exchange only Feedback: we will leave all positive and good feedback to buyer, and if you not satisfaid with order pls contact us before leave feedback we will reslove it up till ur satisfaid finally.



Yellow earpiece (skin colour)
